Signal conditioners and measurement amplifiers developed and manufactured by Inelta Sensorsysteme

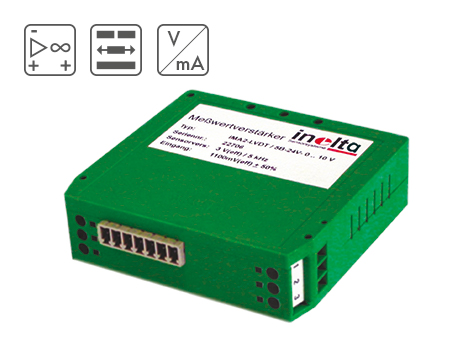

IMA2-LVDT

Signal conditioners for AC - LVDT displacement sensors to generate standard - DC voltage and current output signals. These devices simultaneously supply the connected LVDT with the required excitation voltage.

Construction	DIN rail housing
Sensor type	LVDT
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP40 ,

IMA2-DMS

Universal signal conditioner, with analogue output, easy to put into operation. The zero point (offset) and the amplification can be easily readjusted via externally accessible trimming potentiometers.

Construction	DIN rail housing
Sensor type	Strain gauges
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP40 ,

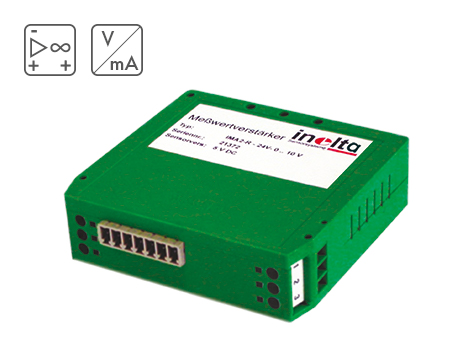

IMA2-R

Signal conditioner for converting resistive changes, generated by potentiometers or potentiometric displacement or angle transducers. The voltage dropping across the potentiometer is converted to a standard analog signal direct proportional to displacement or rotation angle.

Construction	DIN rail housing
Sensor type	Potentiometer
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP40 ,

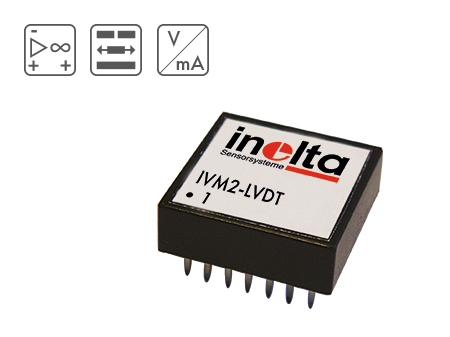

IVM2-LVDT

Single channel - signal conditioner for AC - LVDT displacement sensors with minimal dimensions of only 25x25x9 mm for direct mounting on PCB`s. The device simultaneously generates the excitation voltage for full bridge LVDT`s.

Construction	Module
Sensor type	LVDT
Output signal	+- 11 V ,
Supply voltage	±15VDC
Sealing	IP40 ,

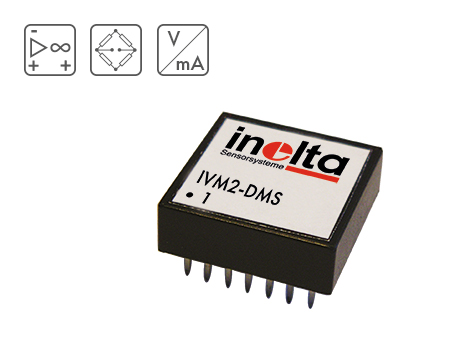

IVM2-DMS

Signal conditioner for strain gauge based force sensors with strain gauge full bridges, 16 pin and 2.54mm pitch, for direct PCB mounting.

Construction	Module
Sensor type	Strain gauges
Output signal	+- 12 V ,
Supply voltage	±15VDC
Sealing	IP40 ,

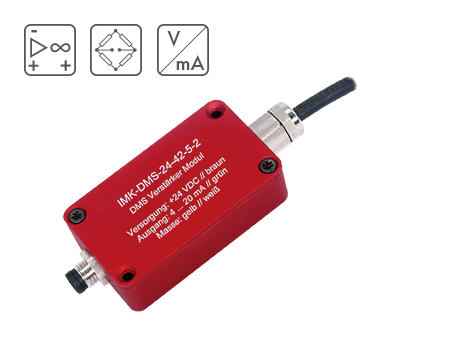

IMK-DMS

Signal conditioner for cable mounting for strain gauge based force sensors with 5 or 10V bridge supply voltage in robust aluminum housing. Also available with detachable plug connection between sensor and signal conditioner for easy mounting conditions.

Construction	Aluminium housing
Sensor type	Strain gauges
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP65 ,

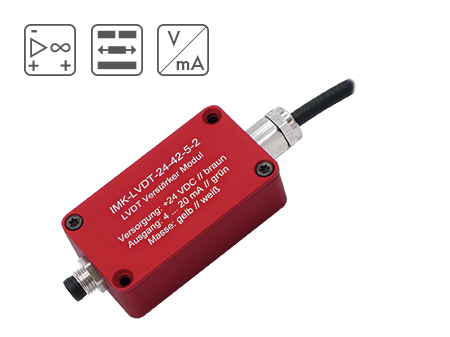

IMK-LVDT

Signal conditioner for cable mounting for LVDT displacement and position sensors in robust aluminum housing. Offered with Inelta LVDT`s or other manufacturer`s products as calibrated and matched set supplied with measurement protocol.

Construction	Aluminium housing
Sensor type	LVDT
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP65 ,

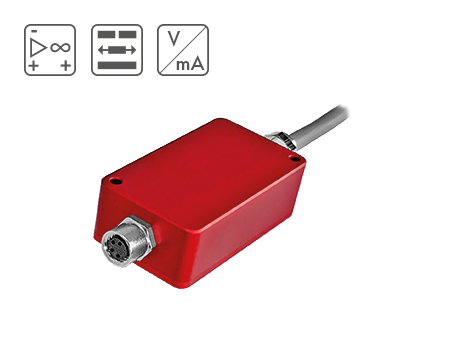

IMK-LVDT-OEM

Signal conditioner module intended for third party LVDTs containing excitation and conversion of coil signals into standardized output signals. Freely configurabel excitation frequency and sensitivity, compatibel with common LVDTs with one primary and two secondary coils with center tap.

Construction	Aluminium housing
Sensor type	LVDT
Output signal	+- 5 V , 0 - 5 V , 0 - 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP65 ,

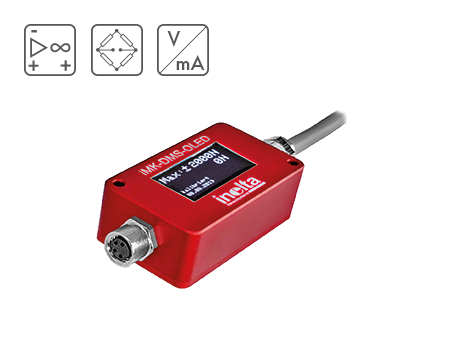

IMK-DMS-OLED

Signal conditioner for cable mounting for strain gauge based force sensors with 5 or 10V bridge supply voltage in robust aluminum housing and measurement display. Also available with detachable plug connection between sensor and signal conditioner for easy mounting conditions.

Construction	Aluminium housing
Sensor type	Strain gauges
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	5VDC
Sealing	IP65 ,

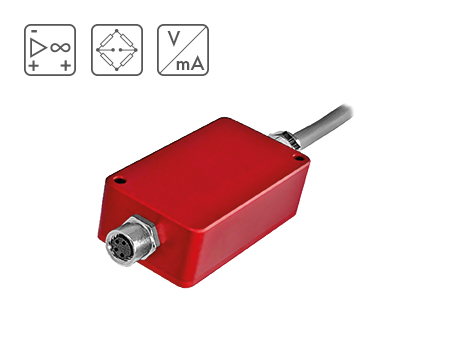

IMK-DMS-OEM

Signal conditioner for cable mounting for strain gauge based force sensors with 5 or 10V bridge supply voltage in robust aluminum housing. Gain and offset can be adjusted using a precision trimmer potentiometer in opened enclosure position.

Construction	Aluminium housing
Sensor type	Strain gauges
Output signal	0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Supply voltage	24VDC
Sealing	IP67 ,

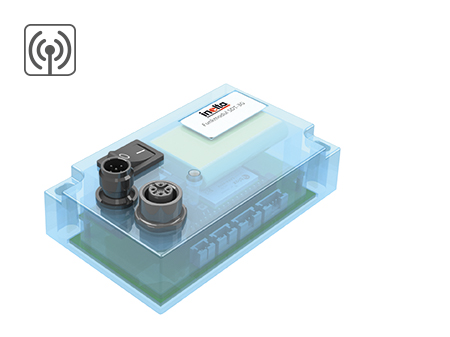

Radio module SDT-XX

The radio module by Inelta transmits sensor signals via mobile radio networks, whenever distances for connection by cable are too large or installation effort would be too great. Thanks to the high-quality radio technology, the measured sensor data can be transmitted over any distance.
