Force sensors and load cells from Inelta

Inelta manufactures and develops strain gauge (DMS)-based sensors for industrial applications in the area of force measurement technology. The range includes force transducers for compression and tension force measurement, load cells, ring force sensors and load pins with integrated or separate signal conditioners. The sensors below can be customized in shape and signal processing.

Construction
Measuring direction
Nominal force
Output signal
Linearity deviation
Sealing

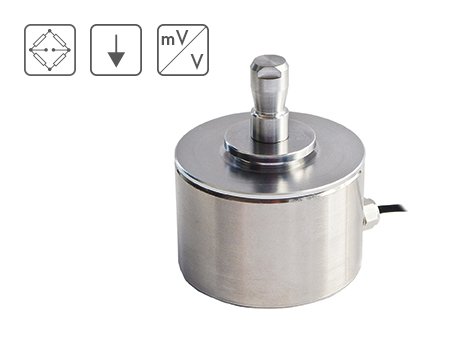

Force sensor FS55

Force sensor FS55

Compression force sensor with overload protection and load pin for use in limited space condition. Preferred use in presses, the sensor detects steeply rising force curves very well, which are typical for press applications.

24h-quote
ConstructionLoad cell
Measuring direction Compression
Nominal force 2,5kN
Output signal
1,5mV/V ,
Linearity deviation < 0,02 % F.S.
Sealing
IP65 ,
Temperature coefficient 0,05 %F.S./K
Temperature range -20 .. +60°C
Data sheet
Download data sheet force sensor FS55 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Load sensor with internal thread



Info

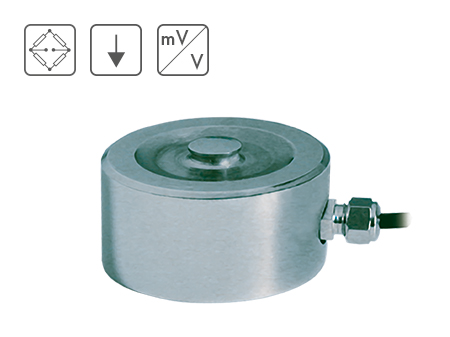

Force sensor KMM50

Force sensor KMM50

Load cell with spherical bearing, compact, for accurate measurement of large forces within small space. There are 3 screw threads for mounting on the underneath. For optimum force application, we offer optional load guiding elements.

24h-quote
ConstructionLoad cell
Measuring direction Compression
Nominal force 1 - 50kN
Output signal
1,5mV/V ,
Linearity deviation < 0,2 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,02 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor KMM50 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Load sensor with external thread



Info

Load sensor with internal thread



Info

Signal conditioner



Info

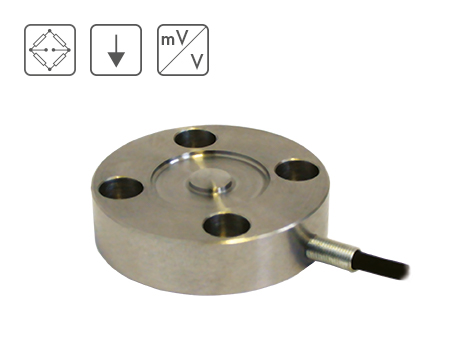

Force sensor KMM60

Force sensor KMM60

Load cell with spherical load button, compact, for accurate measurement of large forces in small space. Four through holes are used for screwing or ducting. For optimum force application, we offer optional load guiding elements.

24h-quote
ConstructionLoad cell
Measuring direction Compression
Nominal force 0,5 - 10kN
Output signal
1,5mV/V ,
Linearity deviation < 0,2 % F.S.
Sealing
IP54 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor KMM60 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Load sensor with external thread



Info

Load sensor with internal thread



Info

Signal conditioner



Info

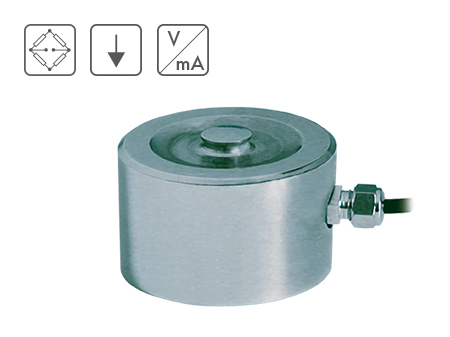

Force sensor KMT55

Force sensor KMT55

Load cell with spherical load button and integrated signal conditioner. For optimum force application, we offer optional load guiding elements.

24h-quote
ConstructionLoad cell
Measuring direction Compression
Nominal force 1 - 50kN
Output signal
0 - 5 V , 0 - 10 V , +- 5 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Linearity deviation < 0,5 % F.S.
Sealing
IP54 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range 0 .. +60°C
Data sheet
Download data sheet force sensor KMT55 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Load sensor with external thread



Info

Load sensor with internal thread



Info

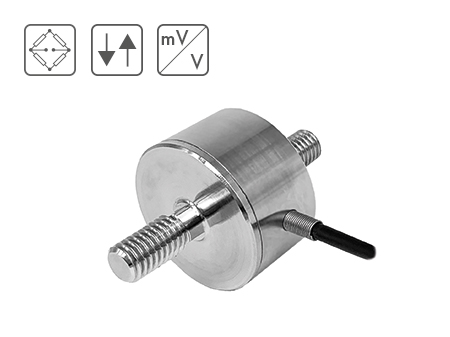

Force sensor KMM20

Force sensor KMM20

Force sensor for force measurement in tension and compression direction. Easy to adjust and integrate due to internal two-sided threaded pins. For optimum force application, we offer optional load transfer elements.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 0,1 - 50kN
Output signal
1,5mV/V ,
Linearity deviation < 0,02 % F.S.
Sealing
IP65 ,
Temperature coefficient 0,05 %F.S./K
Temperature range -20 .. +60°C
Data sheet
Download data sheet force sensor KMM20 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Compensation elements



Info

Signal conditioner



Info

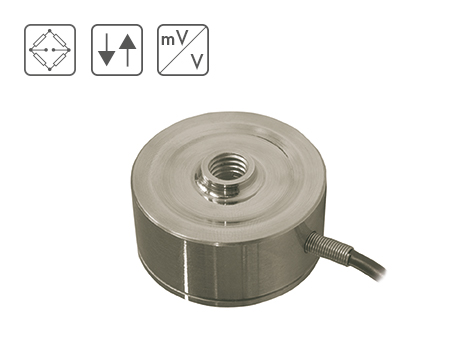

Force sensor KMM30

Force sensor KMM30

Force sensor for force measurement in tension and compression direction. Easy to adjust and integrate due to internal two-sided threats. For optimum force application, we offer optional load transfer elements.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 0,1 - 0,5 kN
Output signal
1,5mV/V ,
Linearity deviation < 0,2 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor KMM30 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Compensation elements



Info

Signal conditioner



Info

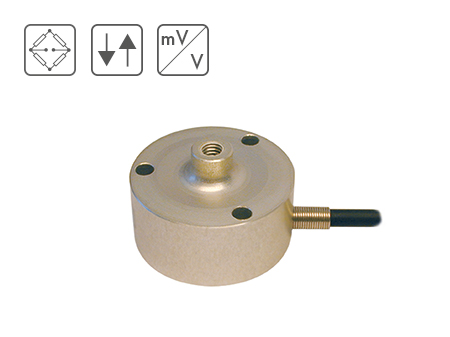

Force sensor KMM62

Force sensor KMM62

Force sensor for force measurement of small forces in tension and compression direction with high repeat accuracy. For use in tensile direction, 3 through holes are provided for mounting.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 0,1 - 0,5 kN
Output signal
1,5mV/V ,
Linearity deviation < 0,2 % F.S.
Sealing
IP54 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor KMM62 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

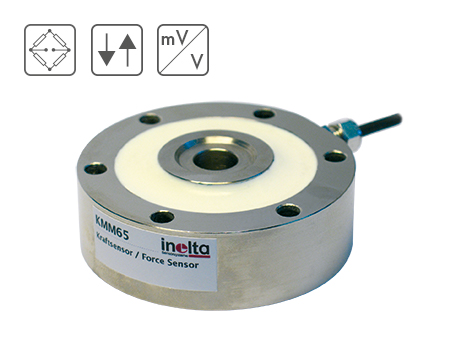

Force sensor KMM65

Force sensor KMM65

Force sensor / ring force sensor with particularly flat design, optimised for very precise detection of axially acting forces via the inner ring. There are 6 through holes for mounting.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 1 - 500kN
Output signal
1,5mV/V ,
Linearity deviation < 0,2 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor KMM65 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

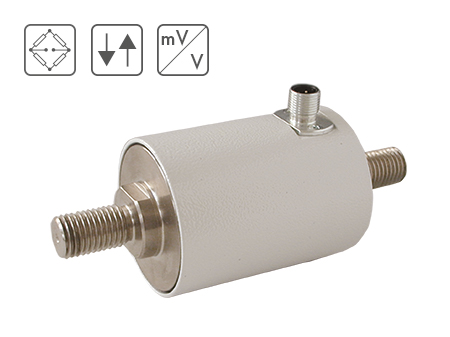

Force sensor FS50

Force sensor FS50

Force sensor for tensile and compressive force measurement, stable construction with two-sided threat, for use between platforms, linkages, also suitable for tensile force measurements in tension and tensioning ropes.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 0,5 - 200kN
Output signal
2mV/V ,
Linearity deviation < 0,1 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FS50 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Compensation elements



Info

Signal conditioner



Info
Force sensor FT50

Force sensor FT50

Force sensor for tensile and compressive force measurement with integrated signal conditioner, stable construction with two-sided threat, for use between platforms, linkages, also suitable for tensile force measurements in tension and tensioning ropes.

24h-quote
ConstructionLoad cell
Measuring direction Pressure/Tension
Nominal force 0,5 - 200kN
Output signal
0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Linearity deviation < 0,1 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,15 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FT50 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Compensation elements



Info

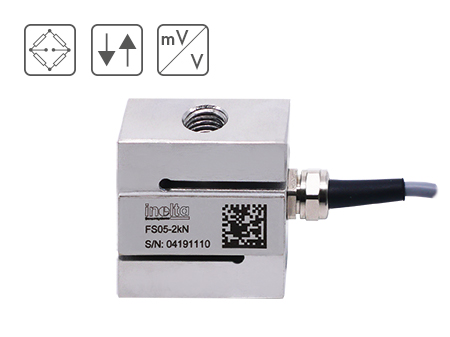

Force sensor FS05

Force sensor FS05

S-beam force sensor with symmetrical design, good dynamic behavior, high breaking load range and easy integration possibility.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 0,5 - 10kN
Output signal
2mV/V ,
Linearity deviation < 0,1 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FS05 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

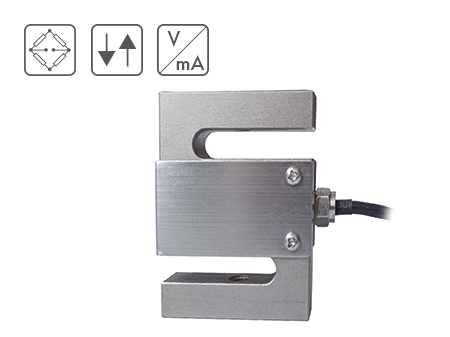

Force sensor FS06

Force sensor FS06

S-beam force sensor with symmetrical design, high accuracy and low linearity deviation for highly precise measurement results, especially in the field of weighing technology.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 0,1 - 5 kN
Output signal
2mV/V ,
Linearity deviation < 0,02 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,02 %F.S./10K
Temperature range -20 .. +60°C
Data sheet
Download data sheet force sensor FS06 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

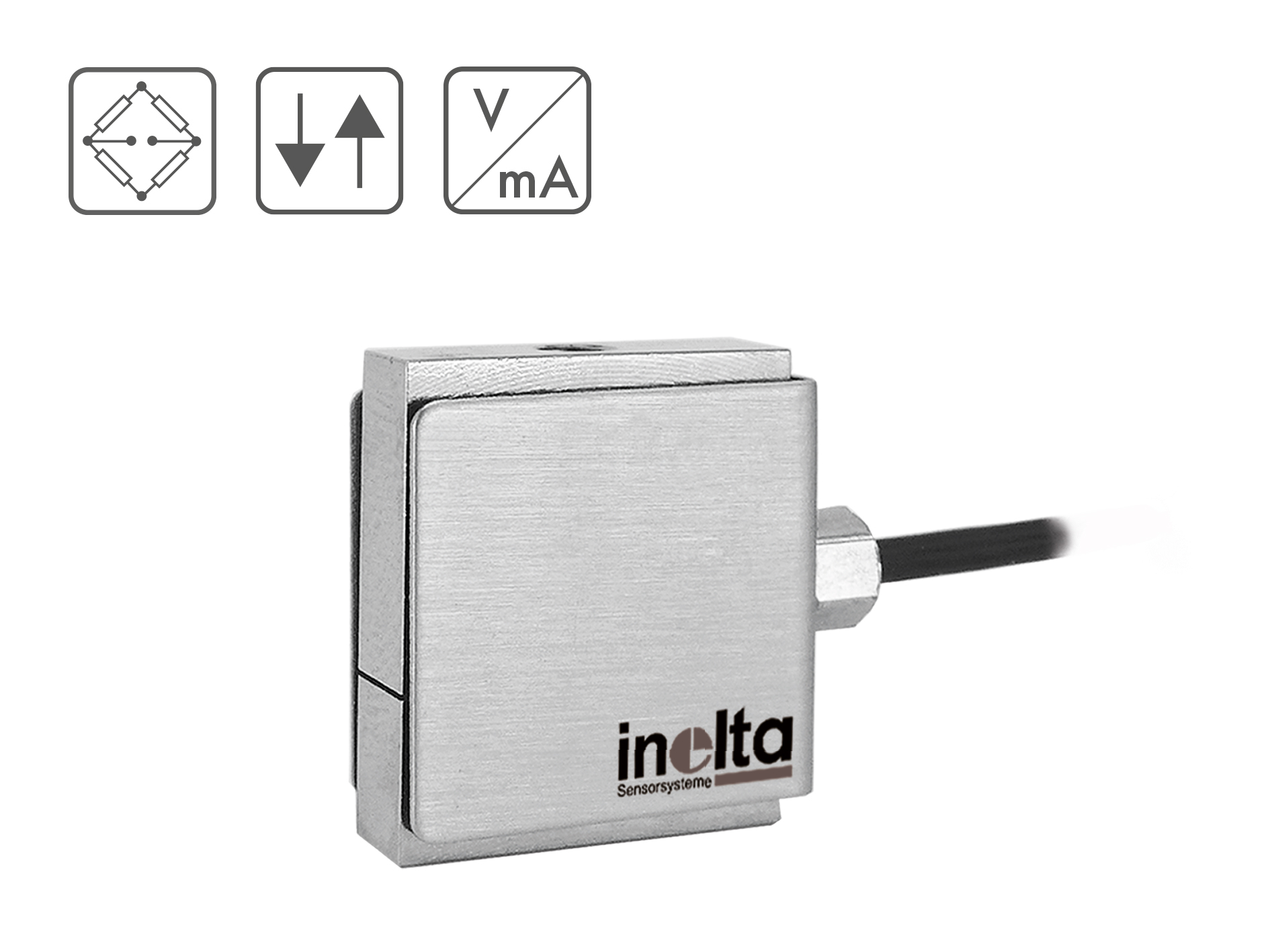

Force sensor FS09

Force sensor FS09

Miniature force sensor for 5 - 20 Newton, relativey high accuracy and reliability despite compact size. Typical applications are measurements of thread or web tension and forces of medical devices.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 0,005 - 0,020 kN
Output signal
1mV/V ,
Linearity deviation < 0,5 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,5 %F.S./10K
Temperature range -20 .. +60°C
Data sheet
Download data sheet force sensor FS09 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

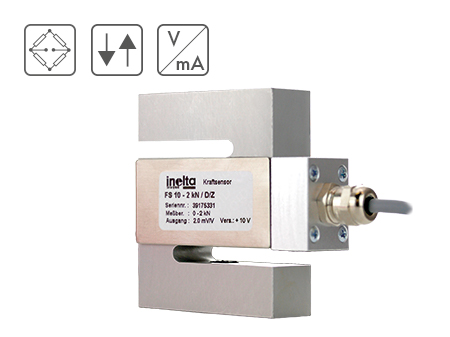

Force sensor FS10

Force sensor FS10

S-beam force sensor with symmetrical design, good dynamic behavior, high breaking load range and easy integration possibility.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 1 - 50kN
Output signal
2mV/V , 3mV/V ,
Linearity deviation < 0,1 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,15 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FS10 in PDF format - nominal force 1-20 kN
Data sheet
Download data sheet force sensor FS10 in PDF format - nominal force 50 kN

For 3D files, please contact our sales department.

Signal conditioner



Info

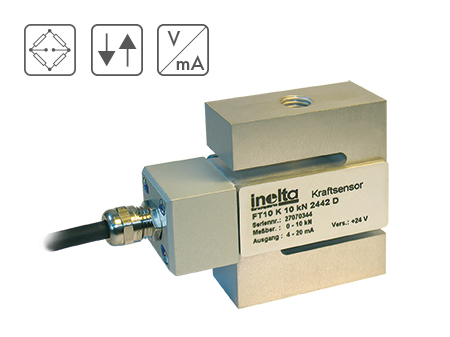

Force sensor FT10

Force sensor FT10

S-beam force sensor with integrated signal conditioner and symmetrical design, good dynamic behavior, high breaking load range and easy integration possibility.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 1 - 50kN
Output signal
0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Linearity deviation < 0,1 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,15 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FT10 in PDF format - nominal force 1-20 kN
Data sheet
Download data sheet force sensor FT10 in PDF format - nominal force 50 kN

For 3D files, please contact our sales department.

Mating connector SKW M16



Info

Mating connector SKG M16



Info

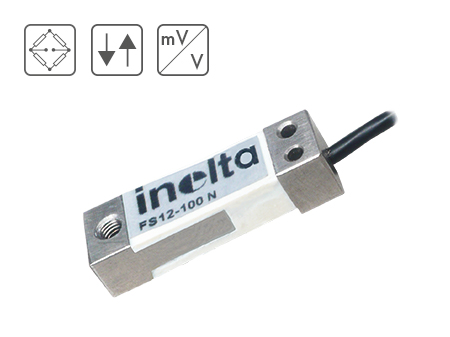

Force sensor FS12

Force sensor FS12

Miniature force sensor, bending beam for tensile and compressive forces, easy to integrate due to high accuracy and reliability. Typical applications are small platform scales and equipment for dosing and level measurement.

24h-quote
ConstructionBeam style
Measuring direction Pressure/Tension
Nominal force 0,1 - 0,5 kN
Output signal
2mV/V ,
Linearity deviation < 0,25 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,5 %F.S./10K
Temperature range -10 .. +70°C
Data sheet
Download data sheet force sensor FS12 in PDF format
CAD-file by e-mail. Please enter your e-mail address.

Signal conditioner



Info

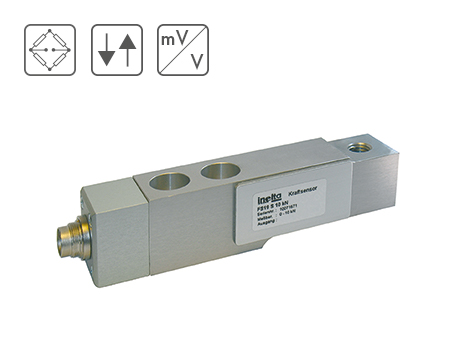

Force sensor FS19

Force sensor FS19

FS19 bending beams measure tensile and compressive forces according to the double beam measuring principle. They are relatively insensitive to slight displacements of the force application, easy to mount and suitable for silo and tank scales, filling machines and more.

24h-quote
ConstructionBeam style
Measuring direction Pressure/Tension
Nominal force 1 - 10kN
Output signal
2mV/V ,
Linearity deviation < 0,1 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range 0 .. +60°C
Data sheet
Download data sheet force sensor FS19 in PDF format

For 3D files, please contact our sales department.

Load sensor with external thread



Info

Signal conditioner



Info

Mating connector SKW M16



Info

Mating connector SKG M16



Info

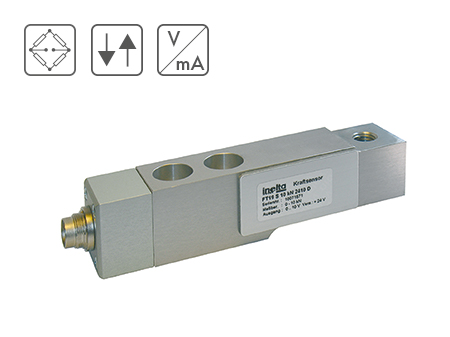

Force sensor FT19

Force sensor FT19

FT19 bending beams with integrated signal conditioner measure tensile and compressive forces according to the double beam measuring principle. They are relatively insensitive to slight displacements of the force application, easy to mount and suitable for silo and tank scales, filling machines and more.

24h-quote
ConstructionBeam style
Measuring direction Pressure/Tension
Nominal force 1 - 10kN
Output signal
0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Linearity deviation < 0,1 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range 0 .. +60°C
Data sheet
Download data sheet force sensor FT19 in PDF format

For 3D files, please contact our sales department.

Load sensor with external thread



Info

Mating connector SKW M16



Info

Mating connector SKG M16



Info

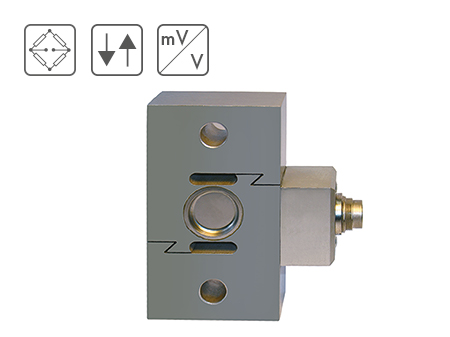

Force sensor FS11

Force sensor FS11

S-beam force sensor with special breaking load protection for safety-relevant applications. In case the sensor breaks under overload, the form closure of the sensor design prevents a complete separation of the construction.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 2 - 20kN
Output signal
2mV/V ,
Linearity deviation < 0,1 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,2 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FS11 in PDF format

For 3D files, please contact our sales department.

Signal conditioner



Info

Mating connector SKW M16



Info

Mating connector SKG M16



Info

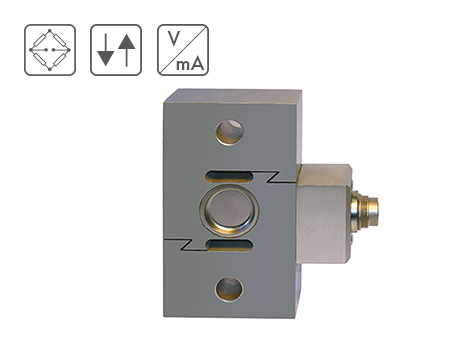

Force sensor FT11

Force sensor FT11

S-beam force sensor with integrated signal conditioner with special breaking load protection for safety-relevant applications. In case the sensor breaks under overload, the form closure of the sensor design prevents a complete separation of the construction.

24h-quote
ConstructionS-Beam
Measuring direction Pressure/Tension
Nominal force 2 - 20kN
Output signal
0 - 5 V , +- 5 V , 0 - 10 V , +- 10 V , 0 - 20 mA , 4 - 20 mA ,
Linearity deviation < 0,1 % F.S.
Sealing
IP65 ,
Temperature coefficient < 0,2 %F.S./10K
Temperature range 0 .. +70°C
Data sheet
Download data sheet force sensor FT11 in PDF format

For 3D files, please contact our sales department.

Mating connector SKW M16



Info

Mating connector SKG M16



Info
Force sensor FT21

Force sensor FT21

Tension and compression force transducer as „bending beam“ with integrated signal conditioner and high linearity, suitable for measuring from small to medium forces. Easy integration and mounting by through holes.

24h-quote
ConstructionBeam style
Measuring direction Pressure/Tension
Nominal force 200N – 10kN
Output signal
0 - 5 V , 0 - 10 V , +- 5 V , +- 10 V , 4 - 20 mA ,
Linearity deviation < 0,02 % F.S.
Sealing
IP64 ,
Temperature coefficient < 0,1 %F.S./10K
Temperature range -20 .. +60°C
Data sheet
Download data sheet force sensor FT21 in PDF format

For 3D files, please contact our sales department.

We are sorry, no results could be found for the selected criteria.

Please contact us for more information. We will be happy to help you.
